Description
- Proudly Designed and Made in USA
- Handguard Extends Past the Front Sight Providing Short Picatinny Rails at the 11, 1, and 6 O’clock Positions for Accessory Mounting
- Full-length Picatinny Flat Top with Cutout for Serial Number Identification
- Monolithic Design Combines M-LOK®, Picatinny, and Optics Real Estate into One Rigid Mount
- Type III Class 2 Matte Black Anodized 6061-T6 Aluminum
- Patented Claw Mount locking Interface
- Chamfered Locking Recess Notch Prevents Hot Spots and Snag Points while Manipulating Charging Handle
- Compatible with MP5® Pattern Pistols and Rifles
| Color(s) | Black |
|---|---|
| Compatible with | MP5® & MP5® Clones |
| M-LOK Slots | Upper: 4 Full Lower: 6 Full and 2 Half per Left and Right side, 3 Full and 1 Half on bottom. |
| Materials | 6061-T6 Aluminum |
| Modular System | M-LOK® |
| Patent | US PAT. 11656059 | US PAT. 11796282 |
| Picatinny Slots | 26 (Top) / 3 (left 45°) / 3 (Right 45°) / 3 (Bottom) |
| Surface Finish | Anodized |
| Torque Specification | 20 in-lbs (T10 – 4x) |
| Weight | 10.5 oz (298 g) |

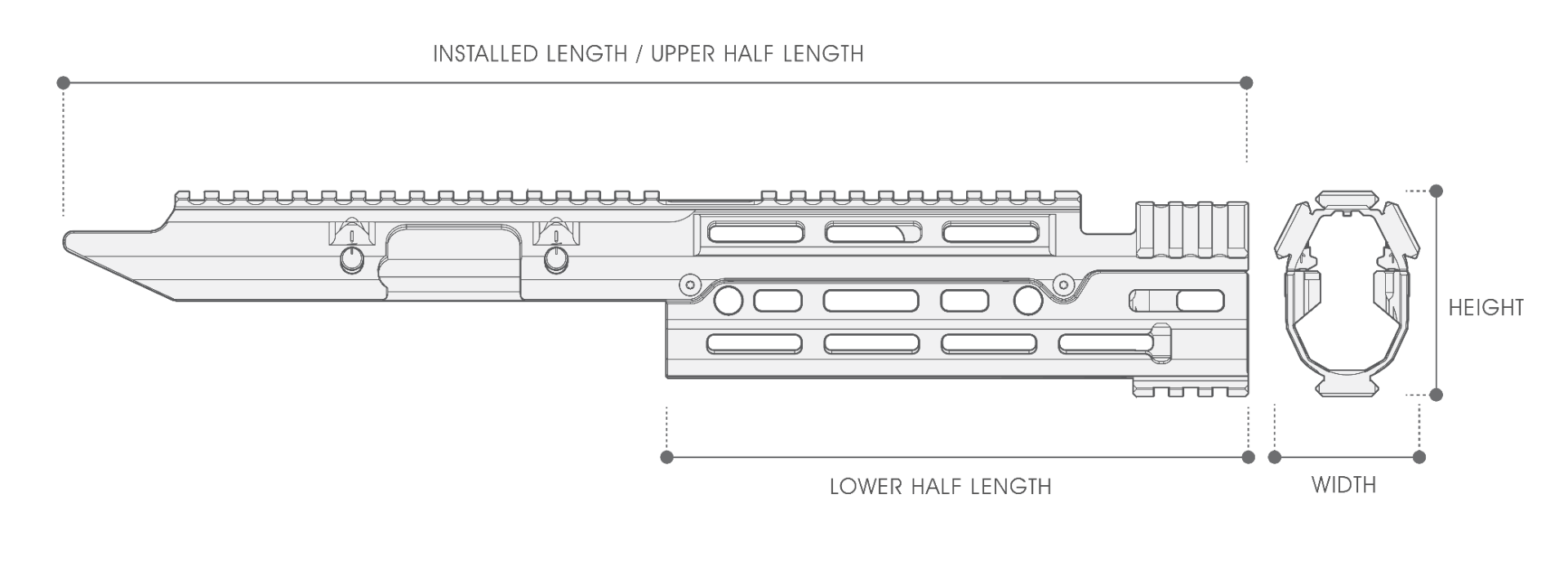

| Height | Upper Half: 1.47 in (37 mm) | Lower Half: 1.68 in (43 mm) |
|---|---|
| Installed Height | 2.75 in (70 mm) |
| Length | Upper Half: 15.90 in (404 mm) | Lower Half: 7.81 in (198 mm) |
| Width | 1.63 in (41 mm) |
